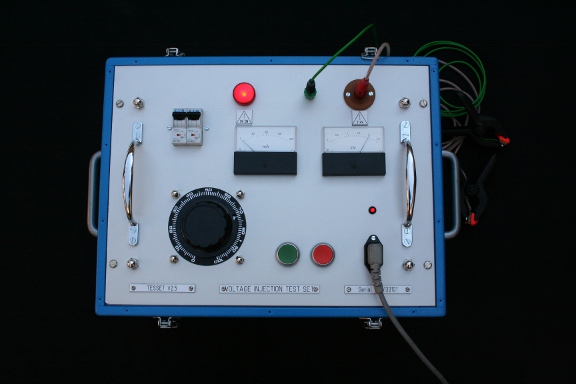

TESSET V 2,5


SPECIFICATIONS
Output voltage:
0 to 2,5 KV open circuit.
0 to 2,1 KV at 160 mA.
Output current:
160 mA continuous. Tripping will occur if 200 mA is exceeded.
Trip time - less than 70 ms.
Limit current:
800 mA. This is the current which will flow in the event of a fault occuring and lasts until the output trips.
Voltmeter accuracy:
2,5 %
Ammeter accuracy:
2,5 %
