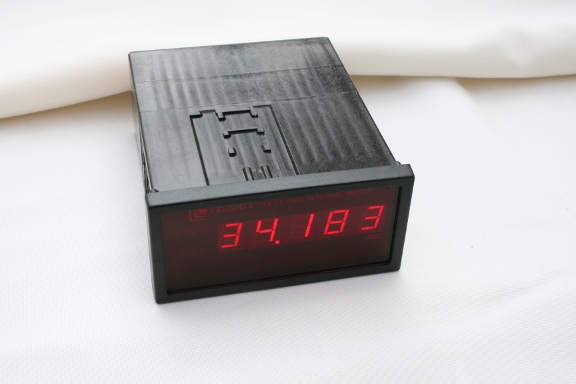

TESSET TX11

FEATURES:

Microprocessor controlled with crystal timebase

5 digit LED display

Ranges: 0 to 99,999; 999,99 and 9999,9 seconds

Autoranges to next range while running.

Can be started and stopped from normally open or closed contacts

Sophisticated debouncing makes it easy to use on mechanical contacts which do not make and break cleanly.

Optically coupled START / STOP / RESET

SPECIFICATIONS:

Accuracy:
1 digit

Frequency error:
75 ppm.

Temperature coefficient:
25 ppm from 0 to 40 ^oC

Enclosure:
Standard 96 x 48 mm instrument enclosure 110 mm deep.

Panel cut out:
91 mm x 45 mm +1 -0 mm

Debouncing:

The debouncing algorithm starts the timer when the normally open contact is closed for more than 1 ms and stops the timer when the normally closed contact remains open for longer than 16 ms. Any bounce caused by the relay contacts moving against each other is therefore ignored, and the timer only stops when the contacts finally part completely.
