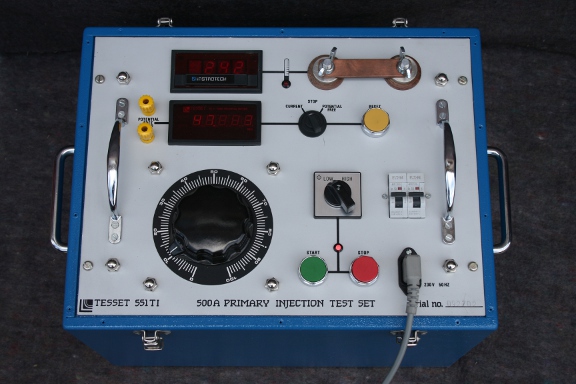

Tesset 551 picture


TESSET 551


FEATURES:

  • Lightweight and compact so one person can handle the test set


  • SET High output rating - 500A at 6 volts, so long test lead can be used.


  • Switch selectable voltage output forr good control of the output current.


  • No need to carry extra instruments - built in 3 1/2 digit ammeter.


  • Robust powder-coated aluminium enclosure to reduce mass.


SPECIFICATIONS:

Supply Voltage:
240 V 50Hz. Supply current 14 A with a load of 500 A on the high range.
Output:
0 - 500 A at 4 or 6 volts ata duty cycle of 5 minutes on and 15 minutes off.
Ammeter:
3 1/2 digit True RMS. responding
Accuracy: 0,5% of reading + 3 digits
Linearity: 0,05%
Temperature coefficient: 30ppm/oC typ.
Enclosure:
Robust powder coated aluminium enclosure removeable lid and rubber feet.
Dimensions:
420mm X 325mm X 410mm
Weight:
Approximately 32 Kg.
