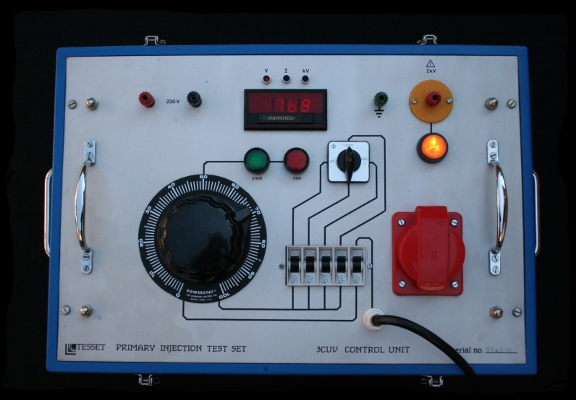

Control Unit picture

The test equipment consists of two units - a control unit which is usually placed in front of the panel which is being tested so the instruments on the panel and test set can be easily read and a loading unit which is placed close to the busbars of the panel on test.

TESSET 1000

CONTROL UNIT FEATURES

Direct reading of output current on 3,5 digit True RMS digital ammeter with no multiplication factors
involved.

0 to 230 volt @ 15 A output with voltmeter.

0 to 1000 volt output for performing magnetisation curves with voltmeter to measure output.

Circuit breaker protection for variable transformer and 1000 volt transformer.

CONTROL UNIT SPECIFICATIONS

Ratings:	Variac output:	0 - 230 volts @ 15 A continuous. 0 - 230 volts @ 30 A 5 min on. 15 min off.
	Mag curve transformer:	1000 volts @ 1 A continuous.
	Pressure testing transformer:	0 - 2,2 kV open circuit. (2,0 kV at 160 mA). Tripping if current exceeds 250 mA in less than 70 ms. Limit current: 1,5 A into short circuit until trip occurs.
Ammeter Accuracy:	0,75 % + 2 digits.
Voltmeter Accuracy:	0,6 % + 1 digits.
Enclosure Type:	Robust blue powder coated steel enclosure with removeable lid, carrying handles and castors or rubber feet.
Enclosure Size:	560mm X 380mm X 450mm
Mass:	51 Kg.

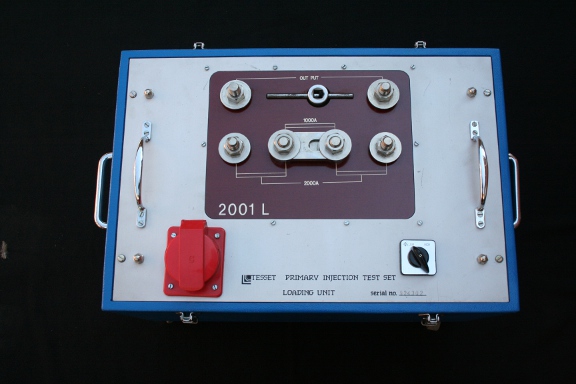

Tesset LOADING UNIT picture

LOADING UNIT FEATURES

Link selectable series or parallel connection of output for the two current ranges.

Switch selectable LOW and HIGH range to adjust output voltage for good control.

Loading transformer protected against overtemperature by means of a thermistor fitted in the winding.

LOADING UNIT SPECIFICATIONS

	SERIES	PARALLEL	DUTY CYCLE
LOW	500 A @ 6V	1000 A @ 3V	5 minutes on / 15 minutes off
HIGH	500 A @ 12V	1000 A @ 6V	5 minutes on / 15 minutes off


Over temperature protection:	A thermistor is fitted to the loading transformer to trip the supply if a temperature of 100^oC is exceeded.
Current transformer:	A 1000:1 current transformer is fitted to the loading unit output for measuring the output current.
Enclosure type:	Robust blue powder coated steel enclosure with removeable lid, carrying handles and castors or rubber feet.
Enclosure size:	560mm x 380mm x 450mm.
Mass:	55 Kg.
